Tabell över dimensioner
Mått för PTFE/Teflon Coated A2-70 Stainless Steel Slotted Cheese Head Screw - DIN 84 i alla tillgängliga storlekar visas enligt produktritningen ovan.

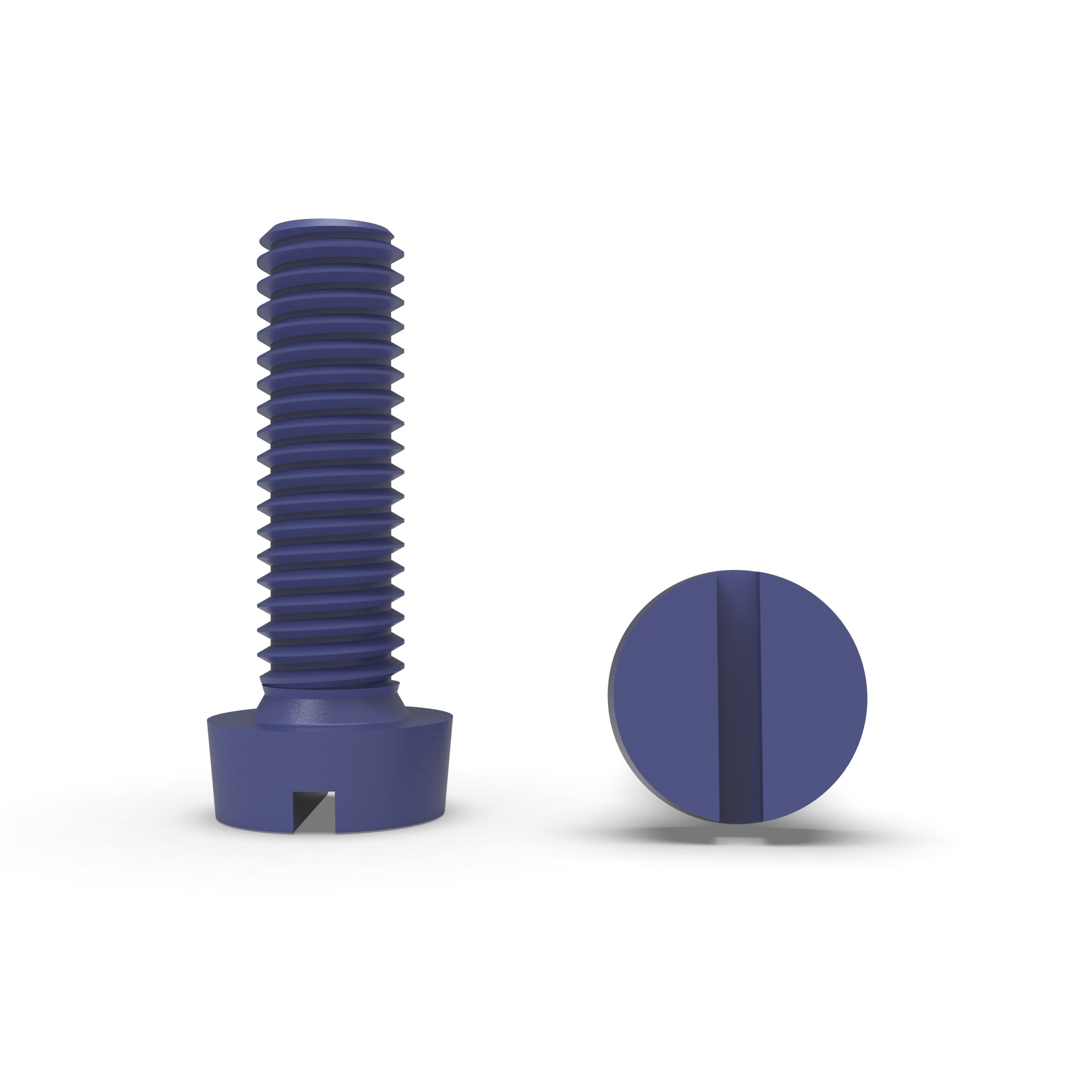

PTFE/Teflon Coated A2-70 Stainless Steel Slotted Cheese Head Screw - DIN 84
Ordinarie pris
€5,87 EUR / each
Ex. VAT
Want it by XYZ?
Want it by XYZ?
Want it by XYZ?
Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email:
sales@highperformancepolymer.com
Phone: +44(0)1865 684080
Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.
Material: PTFE Coated A2-70 Stainless Steel
Measurement System: Metric
Drive Type: Slotted
Blue
260°C
UL94 V0
PTFE/Teflon Coated A2-70 Stainless Steel Slotted Cheese Head Screw - DIN 84 överensstämma med följande standarder/normer:
ISO 1207
DIN 84
CSN 021131
PN 82215
UNI 6107
PTFE Coated Stainless Steel Slotted Cheese Head Screws, available in sizes ranging from M5 to M8 with lengths between 8mm and 100mm. These high-quality screws feature a cylindrical head with a flat top and a single slot, allowing for easy tightening and loosening with a flat-blade screwdriver. Crafted from premium stainless steel and coated with PTFE (Polytetrafluoroethylene), they offer exceptional corrosion resistance, low friction, and enhanced durability. The PTFE coating provides a non-stick surface and excellent chemical resistance, making these screws ideal for applications in harsh environments, woodworking, furniture assembly, and general construction, where reliable and long-lasting fastening solutions are essential.
Metric Size – M5, M6, M8
Length (mm) – 8, 10, 12, 14, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 100
PTFE (Polytetrafluoroethylene) coated stainless steel combines the benefits of both materials to form a versatile and highly functional composite. Here's an overview of its properties:
- Corrosion Resistance: Stainless steel's natural corrosion resistance, thanks to its chromium content, is further enhanced by PTFE, providing excellent protection against rust, chemicals, and environmental degradation.
- Low Friction: PTFE's low coefficient of friction ensures smooth movement. When coated on stainless steel, it reduces surface friction, preventing wear and increasing durability.
- Chemical Inertness: PTFE is chemically inert and resistant to a wide range of chemicals. Applied to stainless steel, it enhances resistance to acids, bases, solvents, and corrosive substances.
- Temperature Stability: PTFE maintains its properties over a broad temperature range (-200°C to +260°C). Combined with stainless steel, it improves the material's ability to withstand extreme temperatures without losing integrity.
- Non-Stick Properties: PTFE's non-stick properties prevent substances from adhering to its surface, making it easy to clean and maintain when applied to stainless steel.
- Electrical Insulation: PTFE is an effective electrical insulator, preventing electrical conductivity. Coated on stainless steel, it enhances the material's electrical insulation properties.
- Biocompatibility: PTFE is biocompatible and inert to biological tissues, making it suitable for medical and pharmaceutical applications. Coated on stainless steel, it improves biocompatibility, reducing the risk of adverse reactions in biological systems.
What is a Slotted Cheese Head Screw?
A slotted cheese head screw is a fastener with a cylindrical head, a flat top, and a single slot across its diameter, allowing for tightening or loosening with a flat-blade screwdriver. These screws are commonly used in applications requiring frequent adjustments or removals, such as woodworking, furniture assembly, and general construction, offering secure and reliable fastening with easy accessibility and adjustment using common hand tools.
Databladet PTFE Coated A2-70 Stainless Steel finns tillgängligt som PDF för nedladdning nedan.
Returnera komponenter inom 90 dagar för full återbetalning. Se returvillkoren för ytterligare information.
| Size | Head Height (mm) | Across Flats (mm) |
| M2 | 3 | 1.6 |
| M2.5 | 3.5 | 1.6 |
| M3 | 5 | 2 |
| M4 | 7 | 2.8 |
| M5 | 8 | 3.5 |
| M6 | 10 | 4 |
| M8 | 13 | 5.3 |
PTFE Coated A2-70 Stainless Steel Datablad
Följ länken nedan för att se vårt datablad PTFE Coated A2-70 Stainless Steel . Detta inkluderar egenskaper som mekanisk, elektrisk, termisk och kemisk beständighet.
Custom Manufacturing
Can't find a component?
We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.
PTFE Coated A2-70 Stainless Steel Viktiga egenskaper
