HPP RENY®

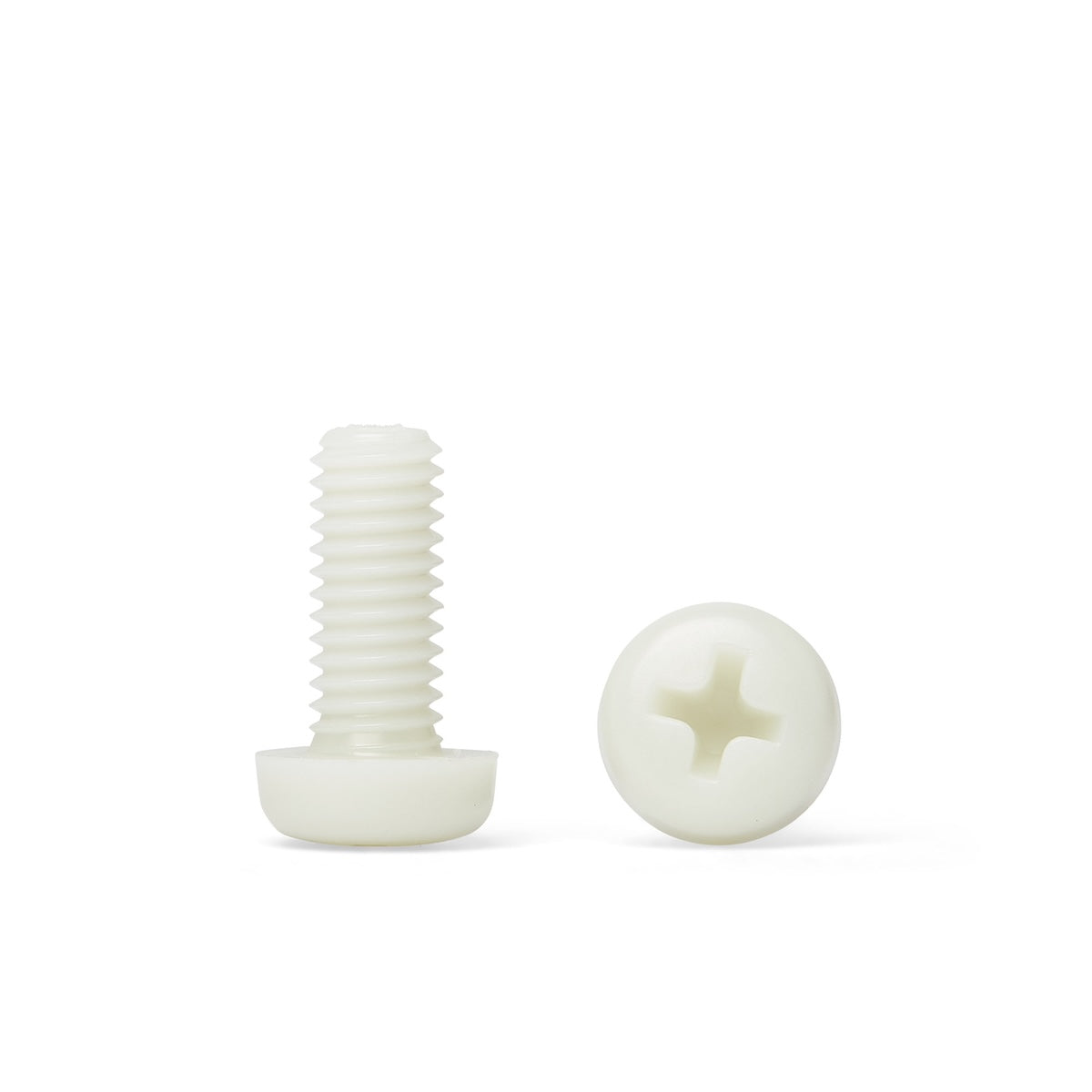

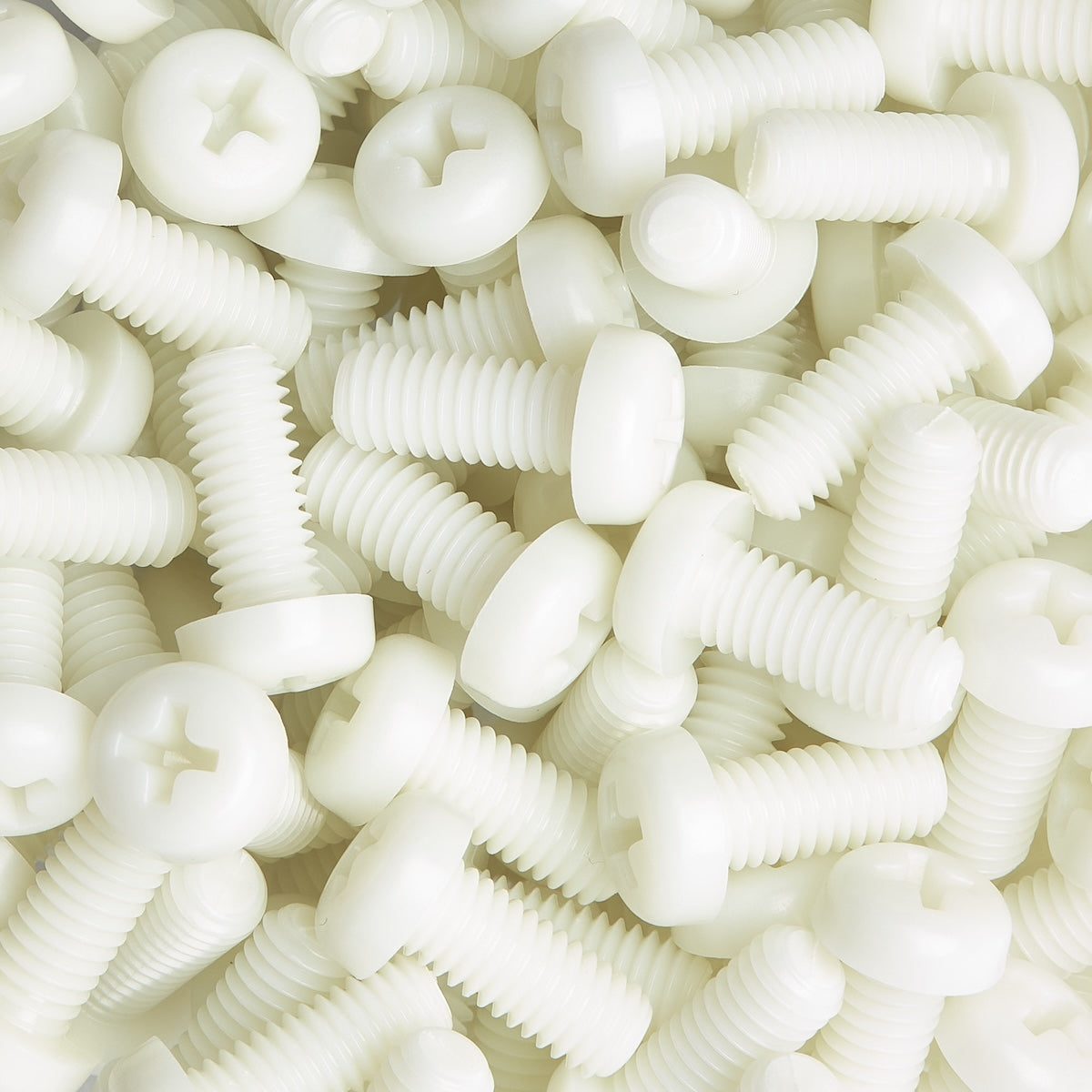

Imperial RENY Cross Recessed Pan Head Screw

Manufactured to order.

SKU: RNYPNIMP256316

€0,35 - €0,54 EUR / each Ex. VAT

Volume Discounts Available:

1 pc €0,54

500 pcs €0,51

1000 pcs €0,49

2500 pcs €0,43

5000 pcs €0,41

10000 pcs €0,38

20000 pcs €0,35

30000+ pcs Contact us

Show more Show less

Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Imperial RENY Cross Recessed Pan Head Screws are available in sizes ranging from 2-56 to 1/4-20 and lengths from 3/16" to 1-1/4". These screws are made from RENY, a polyamide-based thermoplastic reinforced with glass fibers. RENY is known for its excellent mechanical strength, dimensional stability, and high resistance to chemicals and heat. The cross-recessed pan head design facilitates easy and secure fastening, making these screws ideal for a variety of applications requiring durability and reliability in both industrial and commercial settings.

Imperial Thread Size – 2-56, 4-40, 6-32, 8-32, 10-32, ¼-20

Length (In) – 3/16, ¼, 5/16, 3/8, ½, 5/8, ¾, 7/8, 1, 1-1/4

Features of Imperial RENY Cross Recessed Pan Head Screw:

High Mechanical Strength: RENY screws provide superior tensile and shear strength due to the glass fiber reinforcement, making them capable of withstanding significant loads and stress.

Chemical and Heat Resistance: The material's excellent resistance to a wide range of chemicals, including oils, fuels, and solvents, combined with its high thermal stability, ensures that these screws perform well in challenging environments.

Advantages of Using Imperial RENY Cross Recessed Pan Head Screws:

Dimensional Stability: RENY maintains its shape and mechanical properties under various environmental conditions, ensuring consistent performance.

Lightweight: Despite their high strength, RENY screws are lighter than metal alternatives, which helps reduce the overall weight of assemblies.

Corrosion Resistance: The material's inherent resistance to corrosion makes these screws ideal for applications where exposure to moisture or chemicals is a concern.

Electrical Insulation: RENY provides excellent electrical insulation properties, making these screws suitable for electronic and electrical applications.

Ease of Installation: The cross-recessed pan head design allows for easy installation with standard tools, ensuring secure and reliable fastening.

Specific Applications of Imperial RENY Cross Recessed Pan Head Screws:

Electronics and Electrical Equipment:

Used in securing components within electronic devices and enclosures, where electrical insulation and dimensional stability are crucial.

Ideal for fastening circuit boards and other sensitive electronics, preventing electrical interference and corrosion.

Automotive Industry:

Employed in automotive applications where resistance to heat and chemicals is essential, such as under-the-hood components.

Suitable for use in interior and exterior automotive fixtures, benefiting from the material's lightweight and corrosion-resistant properties.

Aerospace:

Applied in aircraft systems where high strength, low weight, and thermal stability are required.

Used in non-structural components where dimensional stability and resistance to environmental factors are critical.

Industrial Machinery:

Utilised in machinery and equipment where durable, corrosion-resistant fasteners are necessary.

Ideal for use in chemical processing equipment, benefiting from the material's resistance to aggressive chemicals.

Medical Devices:

Suitable for use in medical equipment where biocompatibility and sterilisation resistance are important.

Employed in diagnostic and analytical instruments, providing durable and non-corrosive fastening solutions.

Imperial RENY Cross Recessed Pan Head Screws, available in sizes from 2-56 to 1/4-20 and lengths from 3/16" to 1-1/4", are made from a high-performance, glass-fiber reinforced polyamide. The screws offer exceptional mechanical strength, chemical resistance, and thermal stability, making them ideal for applications in electronics, automotive, aerospace, industrial machinery, and medical devices. The features of high mechanical strength and chemical resistance, along with advantages like dimensional stability, lightweight nature, and electrical insulation, make these screws a versatile and reliable choice for securing components in demanding environments.

Thread Size	Head Diameter (Inch)	Height Height (Inch)	Thread Series
2-56	0.167	0.058	UNC
4-40	0.219	0.080	UNC
6-32	0.270	0.097	UNC
8-32	0.322	0.115	UNC
10-32	0.373	0.133	UNF
1/4-20	0.492	0.175	UNC
Imperial RENY Cross Recessed Pan Head Screw Dimension Table

Key RENY MXD6 - 50% Glass Fibre Reinforced Nylon Properties

RENY Countersunk Flat Head Screws - High Performance Polymer-Plastic Fastener Components

RENY MXD6 - 50% Glass Fibre Reinforced Nylon Datablad

Följ länken nedan för att se vårt datablad RENY . Detta inkluderar egenskaper som mekanisk, elektrisk, termisk och kemisk beständighet.

Ladda ner PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

RENY Viktiga egenskaper

High Tensile Strength – RENY is among the highest performing polymer screws in terms of tensile strength on the market today (285Mpa).

Low cost - In comparison to other engineered polymer, such as PPS, PI and PEEK.

Low water absorption – especially when compared to Nylon 6/6, this allows dimensional stability and mechanical strength to remain high even under high water absorption environments.

Excellent weight to strength ratio - Specific gravity (1.65).
- Non-Magnetic

- Low thermal conductivity

- Non-Corrosive

- High heat operation (105°C)

- Ultra low weight
- Flame resistance (UL94 HB)

- Hydrolysis resistance
