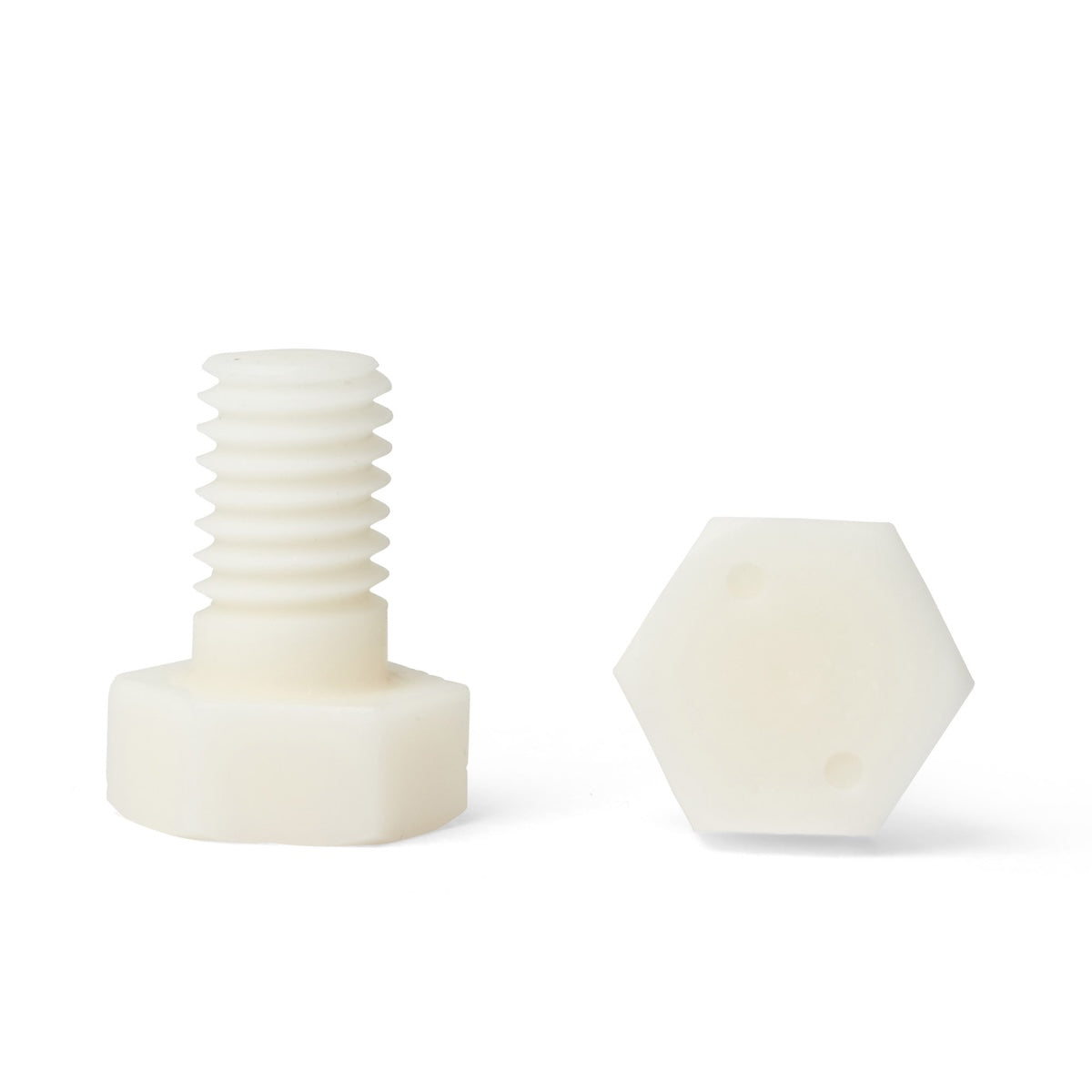

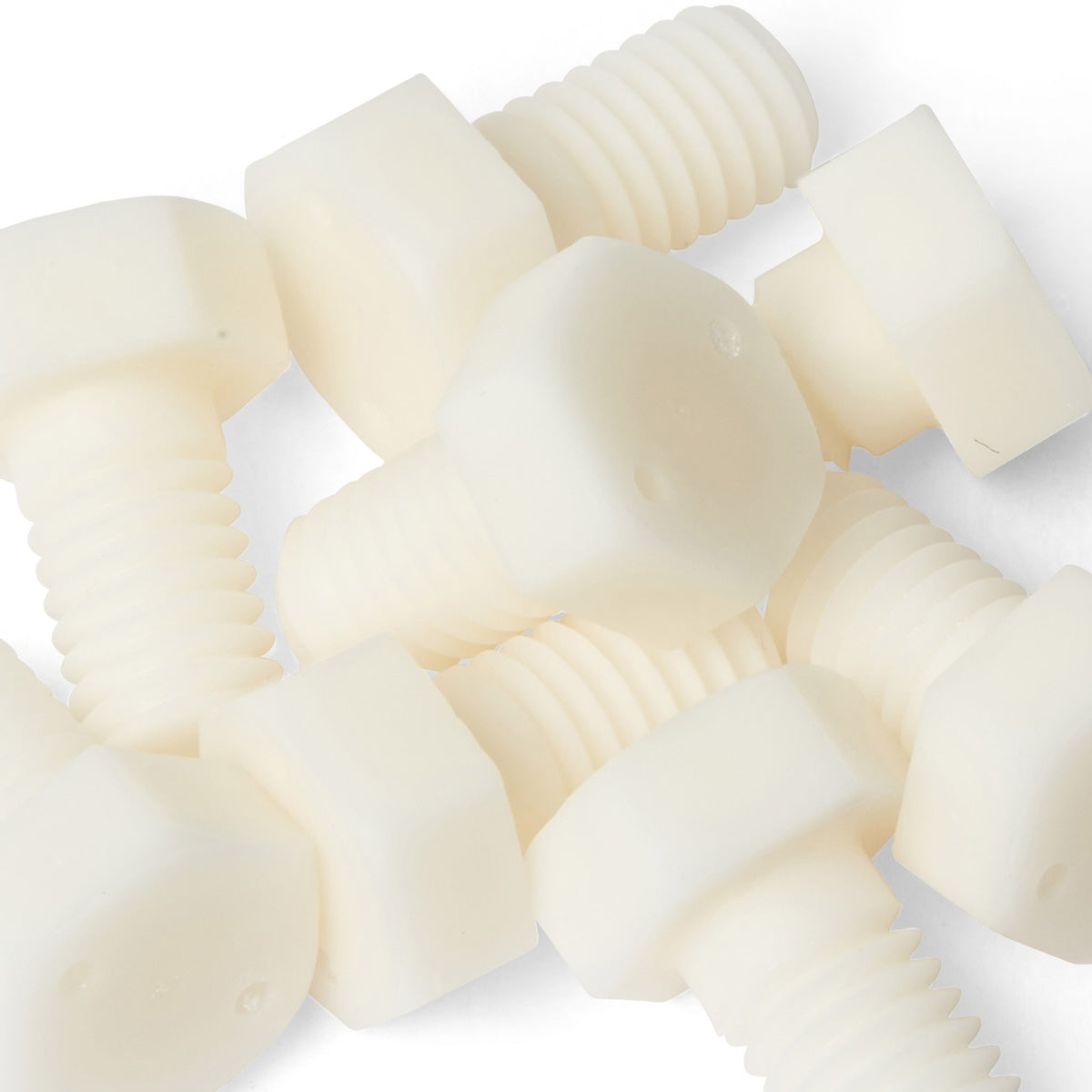

Ceramic (Zirconia) Hexagon Bolt - DIN 933

Manufactured to order.
SKU: CERZIHB416
€17,70 - €20,82 EUR / each Ex. VAT

Volume Discounts Available:

1 pc €20,82
10 pcs €19,78
20 pcs €19,36
30 pcs €18,74
50 pcs €18,32
75 pcs €17,70
200+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: Ceramic

Measurement System: Metric

Drive Type: Hexagon (External)

Colour: White

Continuous Maximum Temperature: 1500ºC

Flammability: Noncombustible

Ceramic (Zirconia) Hexagon Bolt - DIN 933 överensstämma med följande standarder/normer:

ISO 4017

DIN 933

CSN 021103

PN 82105

UNI 5739

Ceramic (Zirconia) Hexagon Bolts are engineered for demanding applications where exceptional strength, wear resistance, electrical insulation, and corrosion resistance are essential. Manufactured from high-purity zirconium dioxide (ZrO₂), these advanced ceramic bolts offer significantly greater fracture toughness and impact resistance than many traditional engineering ceramics, making them an excellent choice for high-performance assemblies operating in harsh chemical, high-temperature, vacuum, and electrically sensitive environments.

These Zirconia ceramic bolts offer substantially higher fracture toughness, greater impact resistance, and superior resistance to mechanical shock, making them ideal for assemblies subjected to vibration, repeated loading, or mechanical stress.

Alumina ceramic bolts, by comparison, provide higher hardness, greater stiffness, and can typically withstand higher continuous operating temperatures. They are often selected for extreme heat, wear, and electrical insulation applications where maximum rigidity is more important than toughness.

Key Features

  • Manufactured from high-performance Zirconia (ZrO₂) ceramic
  • DIN 933 full-thread hexagon bolt design
  • Exceptional fracture toughness compared to most engineering ceramics
  • Extremely high compressive strength and wear resistance
  • Excellent resistance to acids, alkalis, solvents, and aggressive chemicals
  • Electrically insulating and non-conductive
  • Completely non-magnetic
  • Corrosion and oxidation resistant
  • High dimensional stability under elevated temperatures
  • Low thermal conductivity for thermal isolation applications
  • Suitable for vacuum and cleanroom environments
  • Precision manufactured with tight dimensional tolerances
  • Available in custom sizes and bespoke ceramic machining options

Databladet Ceramic finns tillgängligt som PDF för nedladdning nedan.

Returnera komponenter inom 90 dagar för full återbetalning. Se returvillkoren för ytterligare information.

Ceramic (Zirconia) Hexagon Bolt - DIN 933

Produktritning

Hexagon Bolt Dimension Table (ISO 4017/DIN 933)
M Size Pitch (mm) Head Width (Flat-Flat) (mm) Head Height (mm)
M4 0.7 8.0 2.8

Tabell över dimensioner

Mått för Ceramic (Zirconia) Hexagon Bolt - DIN 933 i alla tillgängliga storlekar visas enligt produktritningen ovan.

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

Ceramic Viktiga egenskaper

  • Temperature Stability: Zirconia retains mechanical strength better than many engineering materials at elevated temperatures. With a maximum service temperature of up to 2,400ºC in highly controlled or inert atmospheres.

    Chemical Resistance: This material has excellent resistance to acids, alkalis, solvents, saltwater and oxidation.

    Electrical Insulation: Ziconia screws are ideal where electrical isolation is required, galvanic corrosion must be avoided and non-conductive assemblies are needed.

    High Mechanical Strength: Zirconia is one of the strongest engineering ceramics available. Compared with alumina ceramics, zirconia offers significantly higher toughness and impact resistance.

  • Non-Magnetic: making it suitable for MRI equipment, electronics manufacturing, semiconductor systems and scientific instrumentation.

    High Purity / Cleanroom Compatibility: Zirconia generates very low contamination and is commonly used in semiconductor wafer handling, vacuum systems, medical devices, and cleanroom equipment

    Corrosion Resistance: Unlike metals, zirconia does not rust or oxidize significantly and is immune to galvanic corrosion.

    Biocompatibility: Zirconia is widely used in medical and dental applications because it is biocompatible, non-toxic, chemically inert and non-allergenic.

  • Dimensional Stability: Ceramic Zirconia is able to have minimal creep at moderate temperatures, excellent shape retention, low deformation under load, and stable precision tolerances.

    Acoustic Properties: The high stiffness gives good vibration transmission for acoustic applications and is used in specialist audio and instrumentation applications.

    Optical Properties: Zirconia can be partially translucent in specialized grades and has high refractive index properties.

    Oxidation & Environmental Stability: Zirconia has oxidation and environmental stability as it is highly resistant to oxidation, moisture, steam, and most corrosive atmospheres.
