Hem » Ceramic (Alumina Al2O3) Flat Washers - DIN 125A
HPP CERAMIC®

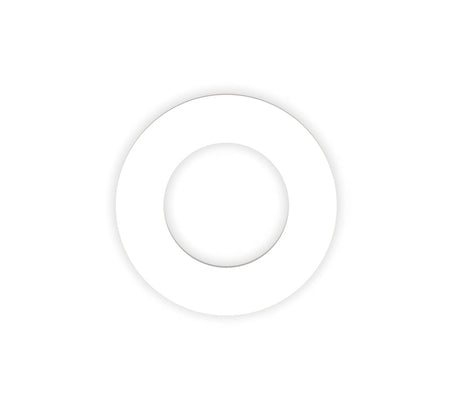

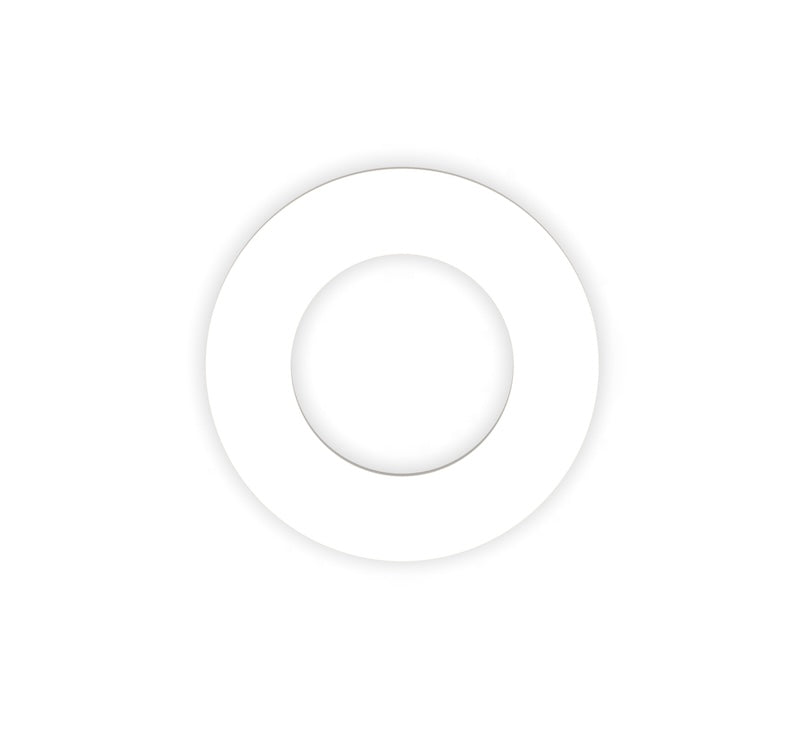

Ceramic (Alumina Al2O3) Flat Washers - DIN 125A

42 In Stock
SKU: CERWAM3
€7,00 - €8,75 EUR / each Ex. VAT

Volume Discounts Available:

1 pc €8,75
10 pcs €8,31
20 pcs €8,14
30 pcs €7,88
50 pcs €7,70
75 pcs €7,44
100 pcs €7,00
200+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: Ceramic

Measurement System: Metric

White/Natural

Ceramic = 1500°C

Flammability = Noncombustible

Ceramic (Alumina Al2O3) Flat Washers - DIN 125A överensstämma med följande standarder/normer:

ISO 7089

DIN125A

Ceramic (99.5% Alumina Al2O3) flat washers in DIN 125A specification are perfect for extreme applications where exceptional heat resistance, electrical insulation and chemical resistance are required.

Key features of the washers include:

  • Made from 99.5% high-purity alumina.
  • Manufactured to DIN 125A.
  • Continuous use temperature of 1,500°C.
  • Excellent heat resistance, chemical resistance, and electrical insulation.

High Temperature Resistance: They exhibit excellent resistance to high temperatures (up to 1,500°C continuous). This makes our washers suitable for applications in high-temperature environments, such as satellites, vacuum and furnaces.

Exceptional Hardness: Alumina is known for its high hardness, ranking just below diamond on the Mohs scale. Our washers offer exceptional resistance to abrasion, wear, and surface damage. This makes them ideal for applications where components are subjected to friction or abrasive forces.

Corrosion Resistance: Our washers are highly resistant to corrosion and chemical attack. It can withstand exposure to various acids, alkalis, and corrosive substances without degradation. Our washers are commonly used in industries where chemical resistance is essential, such as chemical processing plants, and oil and gas production.

Electrical Insulation: These washer products are an excellent electrical insulator. Our washers do not conduct electricity, making them suitable for applications where electrical insulation is necessary, such as high-voltage equipment.

Lightweight: These washers are lightweight. This property is advantageous in applications where weight reduction is a priority, such as aerospace or automotive industries.

Specialised Applications: Ceramic Alumina washers are designed for usage in a wide range of industries, including aerospace, automotive, electronics, semiconductor manufacturing, chemical processing, and high-temperature equipment. They are commonly used in environments where their unique combination of properties, including high temperature resistance, hardness, corrosion resistance, and electrical insulation, essential.

Databladet Ceramic finns tillgängligt som PDF för nedladdning nedan.

Returnera komponenter inom 90 dagar för full återbetalning. Se returvillkoren för ytterligare information.

Ceramic (Alumina Al2O3) Flat Washers - DIN 125A

Produktritning

Flat Washer Dimension Table (ISO7089/DIN125A)
M Size Inside Diameter (mm) Outside Diameter (mm) Thickness (mm)
M3 3.2 7.0 0.5
M4 4.3 9.0 0.8
M5 5.3 10.0 1.0
M6 6.4 12.5 1.6
M7 7.4 14.0 1.6
M8 8.4 17.0 1.6
M10 10.5 21.0 2.0
M12 13.0 24.0 2.5
M14 15.0 28.0 2.5
M16 17.0 30.0 3.0
M18 19.0 34.0 3.0
M20 21.0 37.0 3.0

Tabell över dimensioner

Mått för Ceramic (Alumina Al2O3) Flat Washers - DIN 125A i alla tillgängliga storlekar visas enligt produktritningen ovan.

Key Ceramic (99.5% Alumina Al₂O₃) Properties

Ceramic (Alumina) Hexagon Bolts - High Performance Polymer-Plastic Fastener Components

Ceramic (99.5% Alumina Al₂O₃) Datablad

Följ länken nedan för att se vårt datablad Ceramic . Detta inkluderar egenskaper som mekanisk, elektrisk, termisk och kemisk beständighet.

Ladda ner PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

Ceramic Viktiga egenskaper

  • Corrosion Resistance: Provides excellent protection against rust, oxidation, and environmental degradation, making them suitable for use in harsh or corrosive environments.

    Chemical Inertness: It is resistant to most acids, alkalis, and other corrosive substances, ensuring durability in harsh chemical environments.

    Density: The density of 99.5% Alumina is approximately **3.90–3.95 g/cm³**, giving it a robust and dense structure.

    Temperature Stability: Alumina conducts heat effectively compared to other ceramics, though it is lower than metals. Alumina withstands extreme temperatures, with a melting point of approximately 2,050°C.

  • Optical Transparency: Thin sections of high-purity alumina can be optically transparent, which is useful in specific optical and laser applications.

    Electrical Insulation: It is an excellent electrical insulator, even at elevated temperatures.

    Biocompatibility: Alumina is biologically inert and safe for medical applications such as implants and prosthetics.

    Durability: Alumina is one of the hardest ceramic materials, making it highly wear-resistant and suitable for abrasive environments.

  • Low Dielectric Loss: It has a low dielectric loss, making it suitable for high-frequency electrical applications.

    High Dielectric Strength: Provides excellent dielectric strength, supporting applications requiring insulating properties under high voltages.

    Strength: It offers high compressive strength and good flexural strength.

    Low Thermal Expansion: Alumina has relatively low thermal expansion, contributing to dimensional stability under temperature variations.
