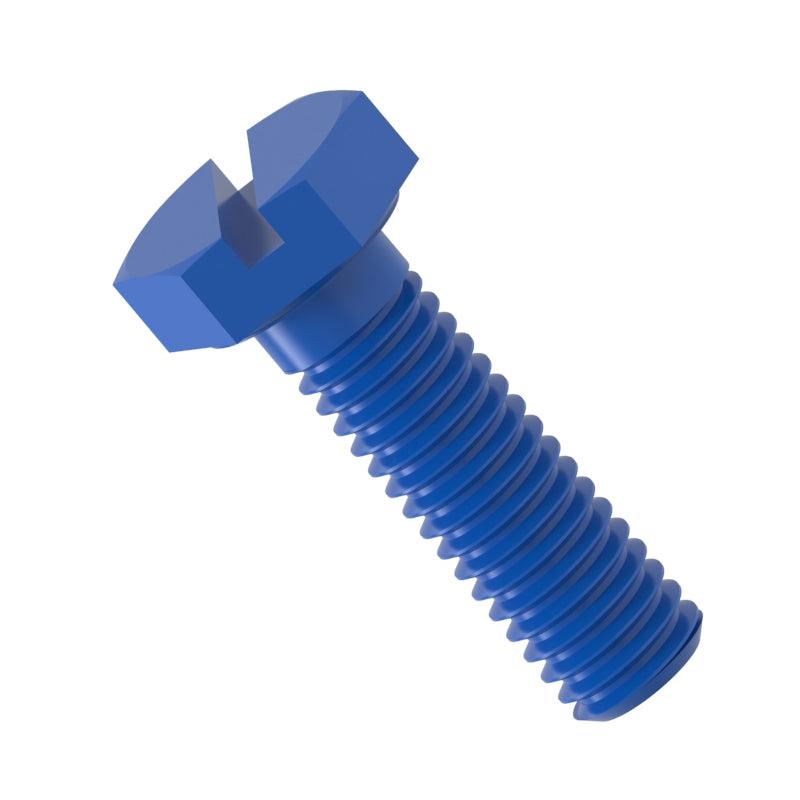

PTFE/Teflon Coated A2-70 Stainless Steel Slotted Hexagon Head Bolt - DIN 933

Manufactured to order.
SKU: PFECSHB510
Ordinarie pris €5,87 EUR / each Ex. VAT
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PTFE Coated A2-70 Stainless Steel

Measurement System: Metric

Drive Type: Hexagon (External)

Blue

260°C

UL94 V0

PTFE/Teflon Coated A2-70 Stainless Steel Slotted Hexagon Head Bolt - DIN 933 överensstämma med följande standarder/normer:

ISO 4017

DIN 933

CSN 021103

PN 82105

UNI 5739

PTFE Coated Stainless Steel Slotted Cheese Head Screws, available in sizes ranging from M5 to M20 with lengths between 10mm and 180mm. These high-quality screws feature a cylindrical head with a flat top and a single slot, allowing for easy tightening and loosening with a flat-blade screwdriver. Crafted from premium stainless steel and coated with PTFE (Polytetrafluoroethylene), they offer exceptional corrosion resistance, low friction, and enhanced durability. The PTFE coating provides a non-stick surface and excellent chemical resistance, making these screws ideal for applications in harsh environments, woodworking, furniture assembly, and general construction, where reliable and long-lasting fastening solutions are essential.

Metric Size – M5, M6, M8, M10, M12, M14, M16, M20

Length (mm) – 10, 12, 16, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100, 110, 120, 130, 140, 150, 160, 180

PTFE (Polytetrafluoroethylene) coated stainless steel combines the desirable properties of both materials to create a versatile and highly functional composite. Here's a brief overview of its properties:

  1. Corrosion Resistance: Stainless steel inherently resists corrosion due to its chromium content, while PTFE adds an additional layer of protection, making the material highly resistant to rust, chemicals, and environmental degradation.
  2. Low Friction: PTFE is known for its low coefficient of friction, providing smooth and easy movement. When coated onto stainless steel, it reduces friction between surfaces, preventing wear and enhancing durability.
  3. Chemical Inertness: PTFE is chemically inert and resistant to a wide range of chemicals. When applied to stainless steel, it enhances the material's resistance to acids, bases, solvents, and corrosive substances.
  4. Temperature Stability: PTFE exhibits exceptional thermal stability, maintaining its properties over a wide range of temperatures (-200°C to +260°C). When combined with stainless steel, it enhances the material's ability to withstand extreme temperatures without losing its integrity.
  5. Non-Stick Properties: PTFE has excellent non-stick properties, preventing adhesion of substances to its surface. When coated onto stainless steel, it creates a non-stick surface that is easy to clean and maintain.
  6. Electrical Insulation: PTFE is a good electrical insulator, providing resistance to electricity and preventing electrical conductivity. When applied to stainless steel, it enhances the material's electrical insulation properties.
  7. Biocompatibility: PTFE is biocompatible and inert to biological tissues, making it suitable for medical and pharmaceutical applications. When coated onto stainless steel, it enhances the material's biocompatibility, reducing the risk of adverse reactions in biological systems.

What are Slotted Hexagon Head Bolts?

Slotted hexagon head bolts are fasteners with a hexagonal head and a single slot (or "cheese") across the head's diameter. This slot allows for tightening or loosening using a flat-blade screwdriver or a slotted screwdriver. These bolts are commonly used in applications where frequent adjustments or removals are required, such as in machinery, automotive assembly, and construction. The hexagonal head provides a secure grip for tightening with a wrench or spanner, while the slot allows for easy accessibility and adjustment with common hand tools.

Databladet PTFE Coated A2-70 Stainless Steel finns tillgängligt som PDF för nedladdning nedan.

Returnera komponenter inom 90 dagar för full återbetalning. Se returvillkoren för ytterligare information.

Size Head Height (mm) Across Flats (mm)
M5 3.5 8
M6 4 10
M8 5.3 13
M10 6.4 15
M12 7.5 16
M14 8.7 18
M16 10 21
M20 12.5 30

Tabell över dimensioner

Mått för PTFE/Teflon Coated A2-70 Stainless Steel Slotted Hexagon Head Bolt - DIN 933 i alla tillgängliga storlekar visas enligt produktritningen ovan.

PTFE Coated A2-70 Stainless Steel Datablad

Följ länken nedan för att se vårt datablad PTFE Coated A2-70 Stainless Steel . Detta inkluderar egenskaper som mekanisk, elektrisk, termisk och kemisk beständighet.

Ladda ner PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PTFE Coated A2-70 Stainless Steel Viktiga egenskaper

  • Corrosion Resistance: Provides excellent protection against rust, oxidation, and environmental degradation, making them suitable for use in harsh or corrosive environments.

    Chemical Inertness: Resists a wide range of chemicals, including acids, bases, solvents, and corrosive substances, without degrading or reacting.

    Low Friction: Offers a low coefficient of friction, which reduces friction between surfaces, minimizes wear, and enhances the longevity of both the fastener and the mating parts.

    Temperature Stability: Maintains its properties across a broad temperature range, from -100°C to +260°C, allowing it to perform well in extreme temperature conditions.

  • Non-Stick Properties: Prevents substances from adhering to the surface, making it easy to clean and maintain, and reducing the risk of contamination in sensitive applications.

    Electrical Insulation: Acts as a good electrical insulator, providing resistance to electrical conductivity and enhancing safety in electrical and electronic applications.

    Biocompatibility: Generally biocompatible and inert to biological tissues, making it suitable for use in medical and pharmaceutical applications where contact with biological systems is required.

    Durability: Enhances the mechanical strength and durability of the fastener, providing long-lasting performance even under challenging conditions.

    Smooth Surface Finish: Provides a smooth, even coating that improves the aesthetic appearance and performance of the fastener.

  • Reduced Torque Requirements: The low friction surface reduces the torque needed for installation and removal, facilitating easier handling and assembly.

    Weather Resistance: Withstands exposure to UV radiation, moisture, and other environmental factors without degrading, making it ideal for outdoor and marine applications.

    Chemical Resistance: Enhances resistance to a broad spectrum of aggressive chemicals beyond what the base material alone can handle.

    Enhanced Performance in Sliding and Rotating Applications: Ideal for applications involving sliding or rotating parts due to its low friction and non-stick characteristics.
