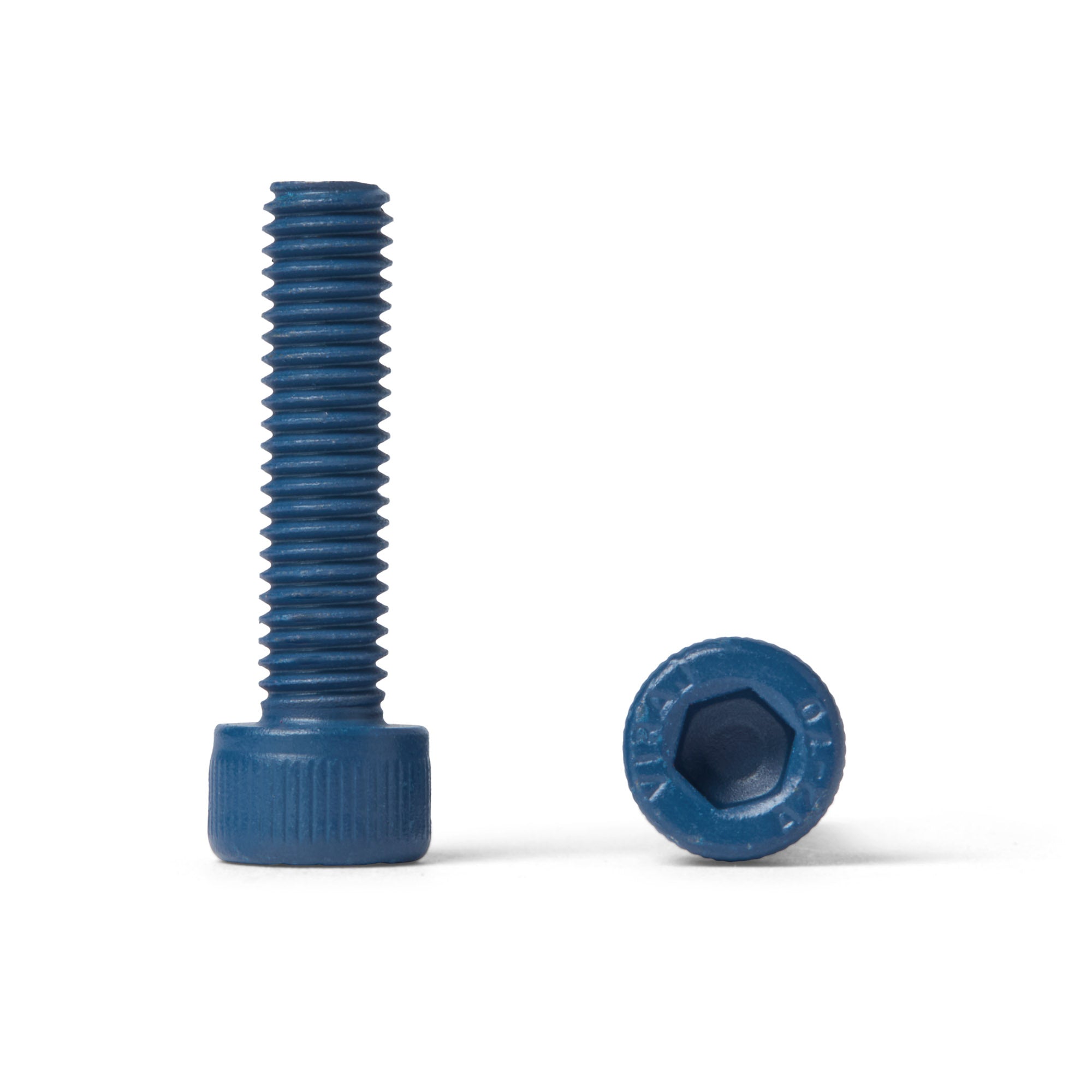

PTFE/Teflon Coated A2-70 Stainless Steel Hex Socket-Cylinder Head Cap Screws - DIN 912

495 In Stock
SKU: PFECSH508
Ordinarie pris €5,87 EUR / each Ex. VAT
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PTFE Coated A2-70 Stainless Steel

Measurement System: Metric

Drive Type: Hex Socket

Blue

260°C

UL94 V0

PTFE/Teflon Coated A2-70 Stainless Steel Hex Socket-Cylinder Head Cap Screws - DIN 912 överensstämma med följande standarder/normer:

DIN: 912

PTFE Coated Stainless Steel Hex Socket-Cylinder Head Cap Screws, available in sizes ranging from M5 to M12 with lengths between 8mm and 120mm. These high-performance screws are crafted from premium stainless steel and feature a PTFE (Polytetrafluoroethylene) coating that offers outstanding corrosion resistance, reduced friction, and enhanced wear protection. The PTFE coating provides a sleek, non-stick finish, making these screws ideal for applications in chemical processing, marine environments, and other demanding conditions where durability and reliability are paramount. Perfect for industrial and specialised applications, these screws deliver superior performance and longevity.

Metric Size – M5, M6, M8, M10, M12

Length (mm) – 8, 10, 12, 14, 16, 18, 20, 22, 25, 30, 35, 40, 40, 50, 60, 70, 80, 90, 100, 110, 120

PTFE (Polytetrafluoroethylene) coated stainless steel combines the desirable properties of both materials to create a versatile and highly functional composite. Here's a brief overview of its properties:

Corrosion Resistance: Stainless steel inherently resists corrosion due to its chromium content, while PTFE adds an additional layer of protection, making the material highly resistant to rust, chemicals, and environmental degradation.

Low Friction: PTFE is known for its low coefficient of friction, providing smooth and easy movement. When coated onto stainless steel, it reduces friction between surfaces, preventing wear and enhancing durability.

Chemical Inertness: PTFE is chemically inert and resistant to a wide range of chemicals. When applied to stainless steel, it enhances the material's resistance to acids, bases, solvents, and corrosive substances.

Temperature Stability: PTFE exhibits exceptional thermal stability, maintaining its properties over a wide range of temperatures (-200°C to +260°C). When combined with stainless steel, it enhances the material's ability to withstand extreme temperatures without losing its integrity.

Non-Stick Properties: PTFE has excellent non-stick properties, preventing adhesion of substances to its surface. When coated onto stainless steel, it creates a non-stick surface that is easy to clean and maintain.

Electrical Insulation: PTFE is a good electrical insulator, providing resistance to electricity and preventing electrical conductivity. When applied to stainless steel, it enhances the material's electrical insulation properties.

Biocompatibility: PTFE is biocompatible and inert to biological tissues, making it suitable for medical and pharmaceutical applications. When coated onto stainless steel, it enhances the material's biocompatibility, reducing the risk of adverse reactions in biological systems.

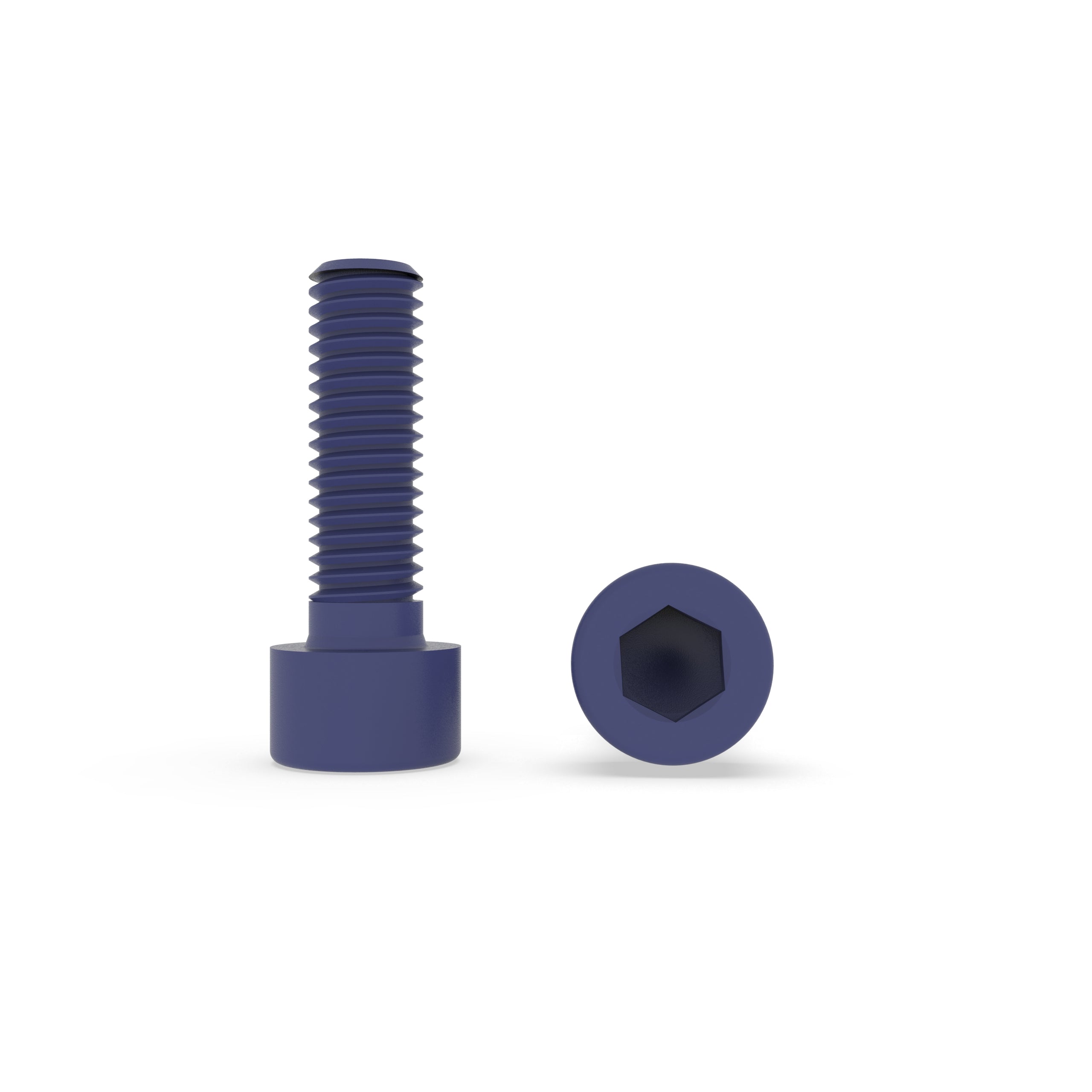

What are Hex Socket-Cylinder Head Cap Screws?

Hex socket-cylinder head cap screws are fasteners with a cylindrical head and a hexagonal recess for tightening or loosening using an Allen wrench or hex key. They offer high strength and precision, commonly used in machinery, automotive, and engineering applications, where reliable, flush fitting and torque control are required.

Databladet PTFE Coated A2-70 Stainless Steel finns tillgängligt som PDF för nedladdning nedan.

Returnera komponenter inom 90 dagar för full återbetalning. Se returvillkoren för ytterligare information.

Size Head Diameter (mm) Head Height (mm) Socket Width (mm)
M3 5.7 1.65 2.08
M4 7.6 2.2 2.58
M5 9.5 2.75 3.08
M6 10.5 3.3 4.095
M8 14 4.4 5.14
M10 17.50 5.5 6.14
M12 21 6.6 8.175

Tabell över dimensioner

Mått för PTFE/Teflon Coated A2-70 Stainless Steel Hex Socket-Cylinder Head Cap Screws - DIN 912 i alla tillgängliga storlekar visas enligt produktritningen ovan.

PTFE Coated A2-70 Stainless Steel Datablad

Följ länken nedan för att se vårt datablad PTFE Coated A2-70 Stainless Steel . Detta inkluderar egenskaper som mekanisk, elektrisk, termisk och kemisk beständighet.

Ladda ner PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PTFE Coated A2-70 Stainless Steel Viktiga egenskaper

  • Corrosion Resistance: Provides excellent protection against rust, oxidation, and environmental degradation, making them suitable for use in harsh or corrosive environments.

    Chemical Inertness: Resists a wide range of chemicals, including acids, bases, solvents, and corrosive substances, without degrading or reacting.

    Low Friction: Offers a low coefficient of friction, which reduces friction between surfaces, minimizes wear, and enhances the longevity of both the fastener and the mating parts.

    Temperature Stability: Maintains its properties across a broad temperature range, from -100°C to +260°C, allowing it to perform well in extreme temperature conditions.

  • Non-Stick Properties: Prevents substances from adhering to the surface, making it easy to clean and maintain, and reducing the risk of contamination in sensitive applications.

    Electrical Insulation: Acts as a good electrical insulator, providing resistance to electrical conductivity and enhancing safety in electrical and electronic applications.

    Biocompatibility: Generally biocompatible and inert to biological tissues, making it suitable for use in medical and pharmaceutical applications where contact with biological systems is required.

    Durability: Enhances the mechanical strength and durability of the fastener, providing long-lasting performance even under challenging conditions.

    Smooth Surface Finish: Provides a smooth, even coating that improves the aesthetic appearance and performance of the fastener.

  • Reduced Torque Requirements: The low friction surface reduces the torque needed for installation and removal, facilitating easier handling and assembly.

    Weather Resistance: Withstands exposure to UV radiation, moisture, and other environmental factors without degrading, making it ideal for outdoor and marine applications.

    Chemical Resistance: Enhances resistance to a broad spectrum of aggressive chemicals beyond what the base material alone can handle.

    Enhanced Performance in Sliding and Rotating Applications: Ideal for applications involving sliding or rotating parts due to its low friction and non-stick characteristics.
